Equipment List

CNC MACHINING CENTERS

MILLING

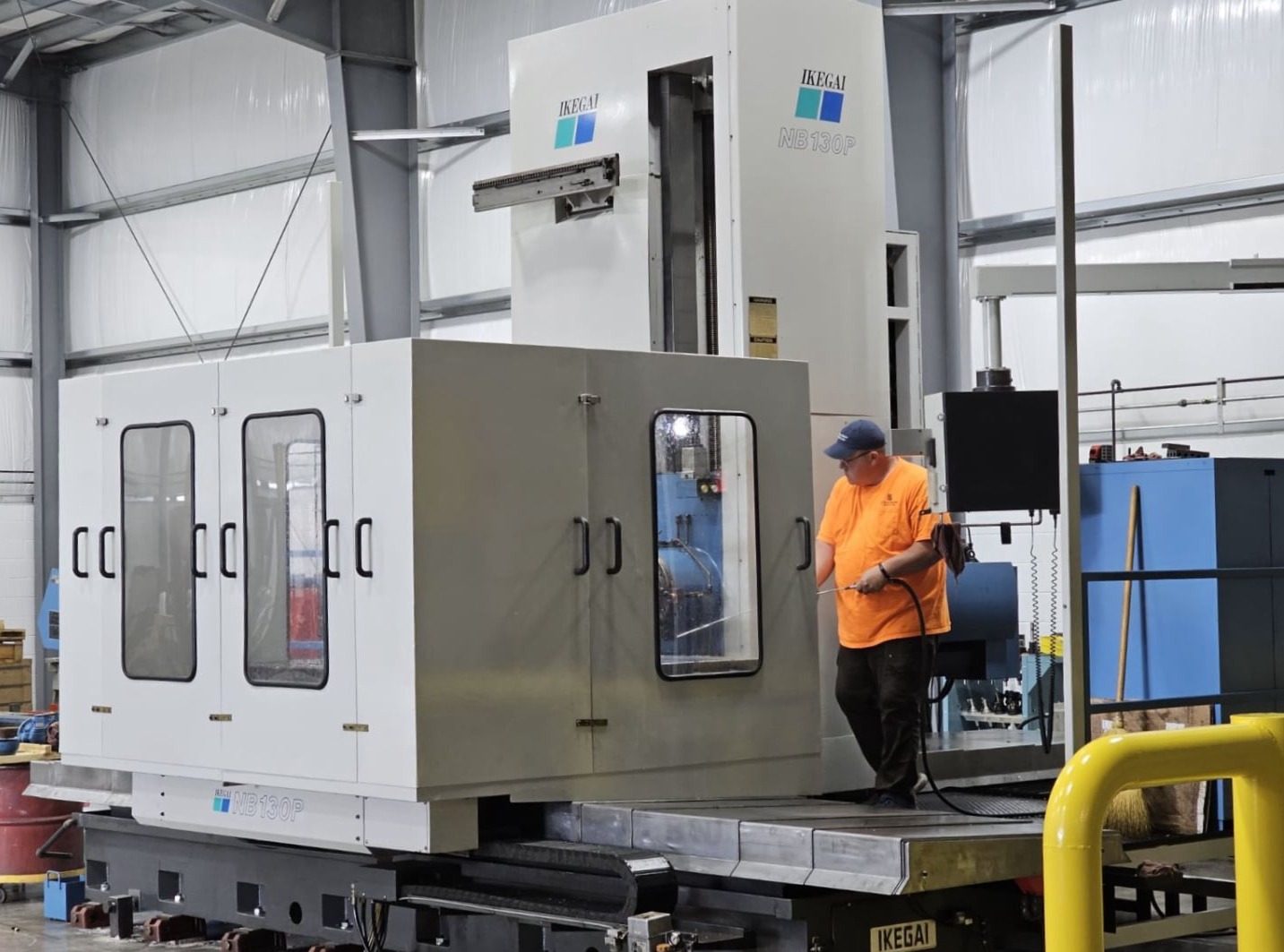

IKEGAI NB130 CNC Horizontal Boring Mill
S/N: A734 #04; 5.12", x 118.11", y 78.74", z 62.99", w 27.55", B-Axis rotary table

Haas EC1600 YZT Horizontal Machining Center
S/N: 2053665, 30HP, 64 x 50 x 40, integrated 4th-Axis fully 5-Axis Capable

Haas VF11-50 Vertical Machining Center
S/N: 1064080, x 120", y 40", z 30" 30hp, complete 4th axis

Haas VF9/50 Vertical Machining Center
S/N: 1111429, 84” x 40” x 30”, 4th axis capability, High speed machining

Haas VF2-SS Vertical Machining Center
S/N: 1125854, 30" x 16" x 20" (762 x 406 x 508 mm)

Haas VF3 Vertical Machining Center
S/N: 1136426, 40" x 20" x 25"

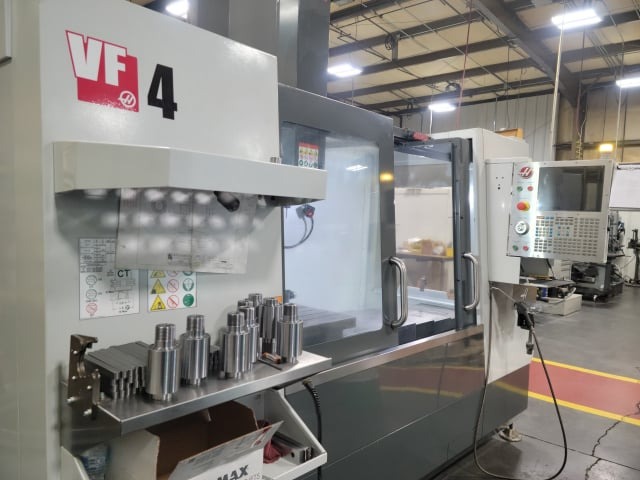

Haas VF4 Vertical Machining Center
S/N: 1146078, 50" x 20" x 25"

Haas DM2 Drill Mill Center
S/N: 1178312, 28" x 16" x 15.5", 4th-Axis & 5th-Axis capable

Doosan 5700 Milling Machine
S/N: MV0091-000554

Doosan 5700 Milling Machine
S/N: MV0091-000553

Shin Nippon-Koki FSP50 Traveling Column Machining Center
S/N: 8936460, x 45.3” y 26”, z 26”, 4th-Axis capable,Table Size 19.7" x 59.1", Load Capacity 4,409 lbs.

Fadal 4525 Vertical Machining Center
S/N: 012004117066, x 45”, y 25”, z 24”

Fadal 4020 Vertical Machining Center
S/N: 9707582, Model 906-1, x 40", y 20", z 28", 4th-Axis capable

Fadal 4020 Vertical Machining Center
S/N: 9704676, Model 906-1, x 40”, y 20”, z 28”, 4th-Axis capable

Fadal VMC 40 Vertical Machining Center
S/N: 9408756, Model 904-1, x 22”, y 16”, z 28”, 4th-Axis capable

Fadal VMC 2216 Vertical Machining Center
S/N: 9608236, Model 904-1, x 22”, y 16”, z 28”

Fadal VMC 15XT Vertical Machining Center
S/N: 9707554, Model 914-15, x 30”, y 16”, z 20” , 4th-Axis capable

Fadal VMC 3016FX Vertical Machining Center
S/N: 012008021466, x 30”, y 16”, z 20”

Fadal 4020 Machining Center
S/N: 012006028626

Fadal VMC XT
S/N: 9702385

CNC TURNING CENTERS

TURNING

Doosan Puma 5100XLC
S/N: ML0304-000026, Max Turn Length 119.7"'; Max Turn Diameter 25.6"; Bar Capacity 10.8''; Boxway X-Axis & Z-Axis Rapid Traverse; Swing Over Bed 34.25''; 12-Station Turret

Doosan Puma VTS1214
S/N: MT0039-000031, 55.11" Swing Over Bed; 29.52" Swing Over Crossrail; 53.14" Max Turning Dia.; 32.04" Max Turning Ht.; X-57.08", Z-31.49", W (CROSSRAIL)-23.62"; Rapid Traverse X-472.44" min., Z-472.44" min; 8800 lbs Max Table Capacity

Dainichi B70 CNC Turning Center
S/N: 9021208, Swing Over Bed 28", 82" Between Centers, Diameter of Hole Thru Spindle - 4.134", Max Weight Between Centers - 6,000 lbs

Haas ST-30 CNC Turning Center
S/N: 3088558, 10" Chuck, 3" Thru Spindle, Max Turning Dia. 15", Max Cutting Length 32.5", Max Swing 20.5"

Mazak M-5N Flatbed Lathe
S/N: 198393, 22” Primary w/ 8” Hole Thru & 22” Secondary 3 Jaw w/ 8” Hole Thru, 7 1/8” Dia. Thru Spindle, Max 24” Dia. Swing Over Bed, 122” Between Centers

Mazak QTN-350-11 Turning Center
S/N: 192444, 12" Kitagawa Chuck, 4” Dia. Thru Spindle, Max 16.54” Machining Dia., 60” Between Centers

Mazak Quick Turn 10
S/N: 121697, 6" Kitagawa Chuck, 1.5" dia. Thru Spindle, Max 8" Machining Dia., 12" Between Centers

Mazak Quick Turn 20 Turning Center
S/N: 118558, 8" Kitagawa Chuck, 2" dia. Thru Spindle, Max 12" Machining Dia., 17" Between Centers

Mazak Quick Turn 20HP Turning Center
S/N: 125253, 10" Kitagawa Chuck 2-13/16 Thru Spindle, Max 12" Machining Diameter, 17" Between Centers

Mazak Quick Turn 20HP Turning Center
S/N: 132163, 10” Kitagawa B-210 3-Jaw Chuck

Mazak QT 30
S/N: 124330

MILLING & TURNING

CONVENTIONAL MACHINING

Lagun Vertical Milling Machine FTV-2S
S/N: SE23982, x 29-1/2", y 16", z 5.1", 18-3/4 Spindle to Table, Max Weight 750 lbs

Lagun Vertical Milling Machine FTV-2S
S/N: SE10479, x 29-1/2", y 16", z 5.1", 18-3/4 Spindle to Table, Max Weight 750 lbs.

Lagun Vertical Milling Machine FT.1
S/N: SE18083

Cincinnati Milacron 207MK Vertical Milling Machine
S/N: 1352-3C1ACE-16, Table size 53-1/2 x 11-1/2

Bridgeport Vertical Milling Mill
S/N: J227696, Series I, Table size 9x48”

Cincinnati 2MI Horizontal Milling Machine
S/N: 1J2PSB-48, x 28", y 13.7", z 16.7"

Cincinnati Cinova 80 205-12 Horizontal Milling Machine
S/N: 2J2P5B-48, 10 X 54 Table 42" Overarm

Lagun Horizonal Milling Machine FU-3-LA
S/N: 108, 13" X 63"

Clausing-Colchester Engine Lathe
S/N: 8-0073-02241, 21" x 144", Equipped with Aloris Tooling

Clausing Colchester 21" Engine Lathe
S/N: 8-0073-02882, Equipped with Aloris Tooling

Summit 19" Gap Bed Engine Lathe
S/N: 3252659, Model 17, 27-1/2" swing in gap, 96" between centers

Clausing Colchester17" Engine Lathe with Accurite Turn Vision
S/N: LMT80SILFV/17027, Swing over bed 17", 80" between centers

DoAll 17" Engine Lathe with Accurite Turn Vision
S/N: P82813, Swing Over Bed 17", Swing Over Cross Slide 9-5/8, 80" between centers

Cincinnati 17" Engine Lathe
S/N; 1W3V5R-94, 17" swing, 11'6" bed

Bridgeport 16-8 Romi Engine 16” Lathe
S/N; 0273137-140, 16” Swing, 60” Between Centers

Clausing Colchester 15" Engine Lathe
S/N; 6-0016-11790, Swing over bed 15-1/4, 50" Between Centers

Clausing Colchester 15" Engine Lathe
S/N; 6-0015-18226, Equipped with Aloris Tooling, Swing over bed 15-1/4, 50" Between Centers

Southbend – Nordic 15” Lathe
15” Swing, 36” between centers

DoAll 13" Gap Bed Engine Lathe
S/N: 26118E, 6" Universal 3 Jaw Chuck, 36" Between Centers

Cincinnati 12-1/2" Tray Top Lathe
S/N: 1W2J5F-42, Collet Attachment, 12-1/2” Swing, 60” Between Centers

Hardinge HLV-H Tool Room Lathe
S/N: HLV-H-421, Swing Over Bed 11", Swing Over Cross Slide 6", Hole Thru Spindle 1-1/4, 18" Between Centers

Le Blond Regal 17E3
S/N: 6E-207, 19-1/4’ x 16’ 3”

SAWS / BAND / CONTOURING / UNISAW / RADIAL

SAWS

Behringer HBE-511A Automatic Band Saw
S/N: 10014100, 18'9" x 2" x .050" with hydraulic verticle bundle clamping system

Marvel PC3S Saw
S/N: F2150-20311PC35, 2000 Series CNC Fully Automatic

AMADA Kysor Johnson Fully Automatic Horizontal Band Saw
S/N: 401254, 16" dia., 18" x 10" Rectangle, 60" Max Auto Feed

DoAll Metal Master Vertical Contouring Band Saw
S/N: 3641774, 36" with mechanical power feed

DoAll 16-3 Vertical Contouring Band Saw
S/N: 12459218, 16" Fully Automatic with Hydraulic Power Feed

DoAll DBW-15 Vertical Contouring Band Saw
S/N: 290744180

Delta 36-941 Platinum Edition Unisaw
S/N: 00D66915, 10" Blade, 27" x 76-1/2" Table

Johnson Horizontal Band Saw
S/N: 980, Model J, 10" Dia.

Johnson Horizontal Band Saw
S/N: 6155, Model J

Rockwell 14-RAS Delta Radial Arm Saw
S/N: GM8538

ELECTRIC DISCHARGE MACHINES

EDM

Charmilles 440CC Wire EDM
S/N: 931447, Max Weight 3300 lbs., Max Size 47.2” x 27.6” x 15.75”

Charmilles 440 Wire EDM
S/N: 930418, Max Weight 3300 lbs., Max Size 47.2” x 27.6” x 15.75”

Makino U3
S/N: W140125

SURFACE, CYLINDRICAL, MECHANICAL, ROTARY & KNIFE

GRINDING

Mattison Surface Grinder
S/N: 24354, x = 120”, y = 36’, z = 36” under wheel

Chevalier FSG-1640AD Grinder
S/N: 410456, x 40”, y 16”

Harig 67214D-F742 Surface Grinder
S/N: 1208-618, 6" x 18", Fully Automated with Hydraulic Powerfeeds

Rockwell Delta Mechanical Surface Grinder
Model: 438-02-314-0524, 6” x 18”

Harig Super 618 Surface Grinder
Ceramax Permanent Magnetic Chuck, 6” x 18”,

Okamoto 24-48DX
S/N: 36069, x 48”, y 24”

ELB Grinder
20 X 28” Table, 21” H capability, x 30”, y 20”

Cincinnati DE Universal Cylindrical Grinder
S/N: 2U13F5P-2, 14" x 72"

Myford MG-12 Cylindrical Grinder
S/N: 80580, 5” x 12”

Toyoda GE4P-50 CNC Cylindrical Grinding Machine
S/N: MGRG4258, 12” x 20”

Cincinnati 142 3HP Pedestal Grinder
S/N: 230230, 12 x 2

Sears 319-19063 Craftsman Pedestal Grinder
S/N, B9437, 8 x 1, Stand

Hisey Wolfe Pedestal Grinder
S/N: 239877, Heavy Duty Pedestal Grinder, Type 12SG, 2 HP

Carboloy 48-0 Pedestal Grinder
S/N: 4112, 10” x 1-1/2”

Blanchard PSG-63UAN Rotary Grinder
S/N: 4933, 36" dia. Chuck, 12" Max Stone to Chuck with New Stones

Gockel GE50-ELT Knife Grinder
S/N: 6862, Bed Size 6” x 10’6”

Gockel GE50-ELT Knife Grinder
S/N: 6846, Bed Size 6” x 8’6”

Superior Hone DU-1 Carbide Dresser
S/N: 80009, 5" Diamond Wheel

WELD/WATERJET/METAL BENDING

FABRICATION

Messer Titan II 12/8 LP
S/N: Titan12/8LP-07-4992
260-amp plasma, 6 oxy fuel torches

Davi MCP 18 Angle Profile Roll
S/N: 21720033, 3-Roll Double Pinch, Hydraulic Vertical, Horizontal & Tilting/Angular Guiding Rolls, Universal Rolls; Davi Multi DRO

Davi MCB E-30 Plate Roll
S/N: 21740145, 10'x3/4" Capacity

OMAX 80160 Precision WaterJet Machining Center
Tilting Head 80” x 160” Sheets up to 4” thick

OMAX 60120 JetMachining Center
Tilt-a-Jet 60" x 120" Sheets

Pacific Hydraulic Press Brake
S/N: 6593, Model: K-400-14; 400 Ton Capacity with 16 ft. Dies

AccurPress CNC Press Brake
Model# Accell, 3-Axis, 12ft., 250 Ton capacity

Wysong CNC Press Brake
S/N: HPS1-100, Model# PHS140-120 SC24-11, 3-Axis, 10ft., 140 Ton capacity

Accurshear 650012 Shear
S/N: 7568 , 1/2" x 12' Shearing capacity

Edwards Ironworker
S/N: 16412008, 120ton

Toledo Pipe Threading Machine
S/N: 6120317, Model 999, with complete set of type thread and bolt thread dies

Toledo Pipe Threading Machine
S/N: 6120371

Rigid Pipe Threading Machine
S/N: 373335Model 535

Ostrander Semour Sheet Metal Roll Form
S/N: C81, 30"

Roper Whitney Shear
S/N: 615878, Model 137L, 16 Gauge

Chicago Bending Brake, size 312
S/N: 103899

Tennsmith 96" Pan Brake
F6-96-12; 12 gauge mild steel & 16 gage stainless steel;
96" bending length

Baileigh Power Bead Roller
S/N: 18502112, BR-18E-24; 16 gauge mild steel & 14 gauge aluminum capacity, 24" throat depth; 30rpm feed rate

Miller Electric Dynastry 800 Tig Welder
S/N: MH240681L

Miller 350 Syncrowave LX Tig Welder
S/N: MJ370577L, 3-310 Output Amperage, 250A @ 30V, Single phase AC/DC

Miller Bobcat 250 EFI Welder Generator
S/N: MG300398R, 40-250A, Stick, Flux, Mig, Tig, Air Carbon Arc cutting

Aronson GE25A Welding Positioner
S/N: 7416, 135° Powered Forward Tilt, 50:1 Variable Speed Drives, NEMA 12 Elecricals, Low Efficiency Worm Gear

Miller 351 Syncrowave CC AC/DC Tig & Stick Welder
S/N: KF872654, 3-430A Amperage Range Stick and Tig with 8000 BTU Radiator, 400 Amp, with Coolmate 3 Torch Coolant Unit

Miller Millermatic CV/DC Mig Welder
S/N: KH349589, Model 250, Low Range 50-350 IPM Full Range 50-650 IPM

Miller Electric XMT 350 Multi-Function Welder
S/N: MH154238U

Miller Electric XMT 350 Multi-Function Welder
S/N: MH334133U

AIRCO Heli-Welder
S/N: HF824492, Model 3A/DDR-224HPA/B-D, 300 amp AC/DC, Tig Torch Coolant

Miller Trailblazer 4F-TBU Portable Mig/Tig/Stick Welder
S/N: R370817, 400 amp, 100% duty cycle,

Miller XMT304 CC/CV DC Inverter Arc Welder
S/N: LG490315A, 300 Amp with Miller 221 Wire Feederand Miller Optima Remote Pulsing Control

Miller Millermatic 200 CV/DC Mig Welder
S/N: JG054904

Lincoln SP-125 CV/DC Mig Welder
S/N: 1990602218

HyperTherm Power Max 600 Plasma Cutter
S/N: PMX600-053359

Scott Portable Gasoline Welder/Generator
S/N: 85654D7, Model #200D, 200 Amp DC

Victor CA2460 Gas Welding Torch
S/N: GU02322, 1W, 3W, 5W, 8 MFA, Cutting Head

HYDRAULIC / MECHANICAL

PRESSES

Dake 75H Hydraulic Press
S/N: 186050, Capacity 75 Tons, Ram Travel 4-1/2", Maximum Work width 44"

Dake 150H Hydraulic Press
Capacity 150 Tons, Ram Travel 8”, Maximum Work Width 48”

Dake 3A Mechanical Arbor Press
S/N: B2588, Capacity 5 Tons

Dake Mechanical Arbor Press
Model 0, Capacity 1-1/2 Tons

Dake Mechanical Arbor Press
Model 1-1/2, Capacity 3 Tons

Dake Compound Lever Arbor Press
Model 4, Capacity 12 Tons

Famco 4R Mechanical Arbor Press
Model 4RS/N: 5A11, Capacity 5 Tons

FEIN Slugger Carbide Drill Press
Model JCM256U

DRILL / PRESS

DRILLS

Cincinnati Bickford Chipmaster Radial Drill
S/N: 2R56, Table 30" x 41", Speeds from 90-1800 RPM

Cincinnati Bickford Radial Arm Drill
S/N: 1R5669, 9” x 36”

Edlund Four Station Drill Press
S/N: 68395, 4 Head Drill With Auto Reverse for Tapping

Cleereman 30" Sliding Head Drill
S/N: 30C-614, 7.5HP

Sears Craftsman 8 Speed Drill Press
S/N: 11321370, 12" x 12" Table, 36" Table Travel

Cincinnati Royal Drill Press
18" w/Power Feed

Alzmetall ESV Drill Press
Type AB3, 20”

Western 5-12BM Drill Press
20”

Clausing 1689 Drill Press
S/N: 531159, ¾ HP, 15” Variable Speed

Clausing 2275 Drill Press
S/N: 522544

Clausing 1641 Drill Press
S/N: 113531

INSPECTION & MEASUREMENT

QUALITY CONTROL

Keyence IM7030T
Image Dimension Measurement System, 7.87 x 11.81 x 2.95 measuring capacity

Zeiss UPMC 850 Coordinate Measuring Machine
CNC precision measuring with universal high-speed scanning probe 3-axis vector control,ZERODUR scales with CARAT technology, ADAPT probe correction, VAST user interface.

Giddings & Lewis CNC Coordinate Measuring Machine
x 20", y 36", z 16"

Faro Arm
Certified 2 sigma +/-.051mm

Mitutoyo PH350 Profile Projector
6 x 16 Table with Mitutoyo Micropak 2, .0001 Readout

MicroVu Spectra 14 Optical Comparator
x overall = .000075, y overall = .0005, xy repeatablity = .0001

Grade B Starrett Granite Tool Room Surface Plate
S/N: 886339, 6" x 24" x 36"

Steel Surface Plate
4" x 26" x 30"

Starrett 18” Level
Model 98, Complete with case

Starrett 6” Level
Model 98

Mitutoyo Depth Gage 12"
Model 010783

Radius Gages Set times 0.5-13.0 MM
0.5 – 13.0MM

DoAll Gage Block Set
Grade A+, Finish .4

Mitutoyo Surface Gage Tester
Model SJ201, Code #178951A

Cadillac Gage Pla-Chek
Model HG-12

Federal Inspection Gage
Model DEI-14121, Complete w/Master Ring-84.97 MM

Federal Inspection Gage
Model DEI-14121, Complete w/Master Ring-101.60 MM

Set of Hoke Precision Gage Blocks Pratt & Whitney
Missing .300, .400, .900 & .123

Complete set Gage Pins
.22 mm-19.14 mm by .02 increments

Brown & Sharp Bench Micrometer # 245 w/ case
Model 245

Complete set with box Micrometers
from: 0-1, 1-2, 2-3, 3-4, 4-5, 5-6

Complete set INTRIMIK Internal Tri-Point Micrometers
1.600-2.00, 2.00-2.400, 2.400-2.800, 2.800-3.200, 3.200-3.600, 3.600-3.400, Complete with Master Gages and Box

Starrett Micrometers 6"-9" w/ 6" 7" 8" Standards
Model 224, Interchangeable Anvils

Set Mitutoyo 12"-16" Micrometers
S/N: 104152, with Box w/ 12, 13, 14, 15 Standards, Interchangeable Anvils

Set in Black case Starrett Micrometers w/Standards
0-1 thru 0-12. 0-1, 1-2, 2-3, 3-4, 4-5 missing

Set of Mitutoyo Digital Calipers
Model CD-24”, Code # 500-506-50,

Set of LS Starrett Dial Calipers
12" with Box Model 120

Set of LS Starrett Beam Trammels
Model C-251

5" Sine Bar

Set 1-2-3 Blocks
S/N: 98-425-2, FIN SPI w/ case #98-424-5 Model SPI

12" Height Dial Gage

Wilson Hardness Tester
Tester # 12387 980

Set of Bench Centers
24" center to center distance

FORKS / LIFTS/ CRANES / DOLLIES

MATERIAL HANDLING

Hoist FR25-35 w/Remote Control
2022, S/N:

Versa Lift 40/60
2013, S/N: 02824

Liebherr LR 622B Crawler/Loader
SN:

35-Ton Mobile Twin Lift System
S/N: C16LPTW0302

30,000 lb. Taylor Fork Truck
S/N: SD619747, Model TCH300M, heavy capacity, 6' standard forks, special
9' extensions, total truck weight 47,960 lb.

22,500 lb. Hyster Fork Truck
S/N: B7P107X, Model # H225-E

15,000 lb. Caterpillar Fork Truck
S/N: 5MB00855, Model #T150D, 6’ standard forks and special 8' extensions

15,000 lb. Caterpillar Fork Truck
S/N: 5MB02113, Model T150D

12,000 lb. Buda Fork Truck
S/N: 45531, Model FT7524

10,000 lb. Caterpillar Fork Truck
S/N: 5RB00878, Model TC100D, 72” forks

4,750 lb. Caterpillar Fork Truck
S/N: AT9033858, Model 2C5000, 48” Forks

3,800 lb. Clark Fork Truck
S/N: C365L-0486-9464FB, Model CGC25, 48” Forks

3,800 lb. Clark Fork Truck
S/N: C365L-0485-9464FB, Model CGC25, 42” Forks

Free Standing Jib Crane # 1210
Model MOD-100-121001010, 360° Rotation, Base Plate Mounted

Yale Mobile Crane
1 ton capacity

Bridge-type Overhead Gantry
20 ton capacity, 14 ft. max. height

Bridge-type Overhead Gantry
3 Ton

JLG Scissor Lift
S/N: 0200057040, Model 2032-E2, Capacity 750 lbs., Max Travel 20’

Genie GS-1930 Electric Scissor Lift
Capacity 500 lbs., Retracted 250-lb Extended 19 Max Platform

Grove Commercial Manlift
S/N: 41447, Series #AMZ40B

Techimpex USA Steerable Dolly & Fixed Travel Dollies
25 Ton Capacity

Techimpex USA Steerable Dolly & Fixed Travel Dollies
64 Ton Capacity

Hovair Air Bearing Kit and Air Bearings
